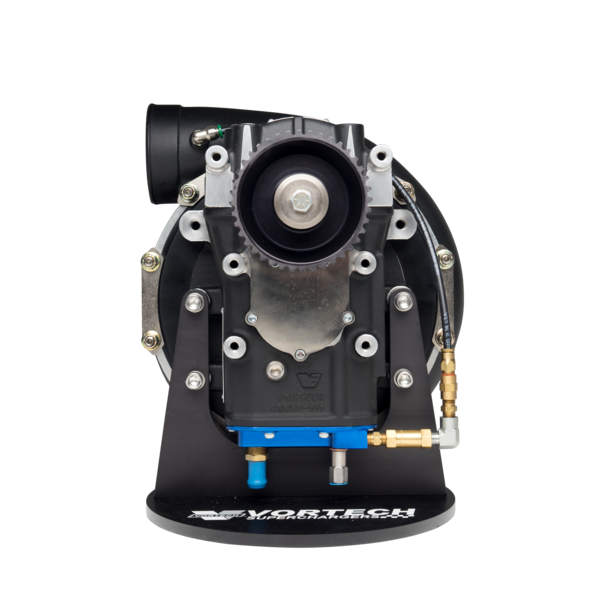

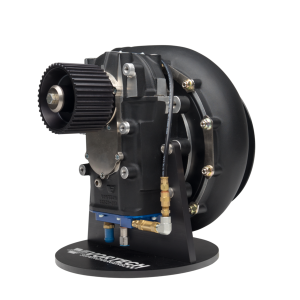

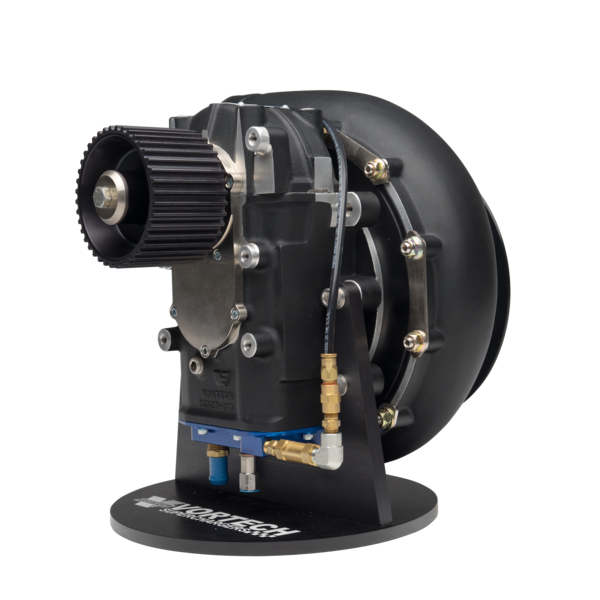

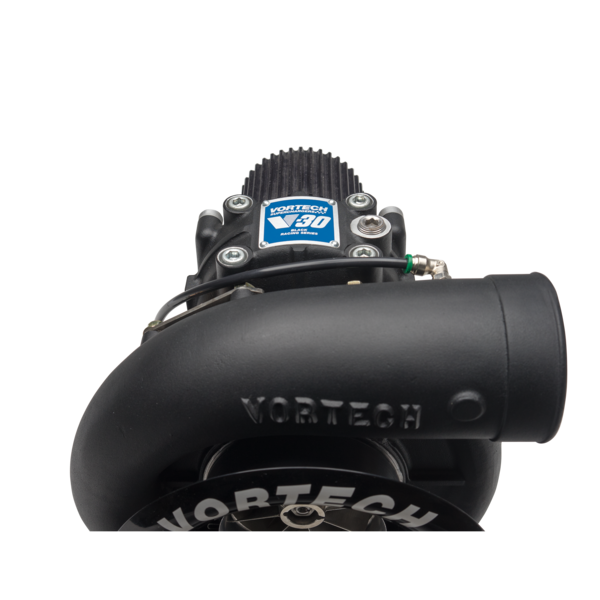

V-30 128A Supercharger Head Unit for up to 3,000+ HP Applications
The V-30 128A Supercharger is a new compressor, replacing the existing V-28 128, and features a plethora of cutting-edge technology, including its technologically advanced, high-efficiency, 5-Axis machined billet impeller and high-diffusion housing developed in our SAE-J1723-compliant supercharger test cell.
Built to address the needs of the over 1,000HP racer, the V-30 is a clean sheet design that incorporates many years of racing compressor knowledge. The patented design employs a unique impeller shaft support system that is robust enough to endure the speeds and accelerations associated with high horsepower drag racing and the durability to perform well in the offshore boat-racing world. The modular design allows fitment of a wide range of compressor stages. All V-30 series superchargers share a 4.21:1 internal step-up ratio and are engine oil lubricated or an auxiliary system can be fabricated. Like the V-1 family, the V-30 can have different compressor stages.
The Vortech V-30 is here!
The next generation of centrifugal race superchargers has arrived! Vortech Superchargers, the company synonymous with efficient boost across the performance industry, is proud to announce the next evolution in race supercharger technology — the Vortech V-30. Utilizing notable advancements in all facets of design and execution, the V-30 is the culmination of years of research & development into new centrifugal compressor technology. Nano-Tolerance Technology, Diverging Diffusion Technology, Superior Bearing Components, and multiple advancements in Enhanced Air Inlet Design come together to produce the most technologically advanced superchargers to date. What this means to you is less heat, lower IATs, and even more power at your disposal.
Nano-Tolerance Technology (NTT) — NTT is a patented material and process that allows Vortech to minimize internal clearances, without raising the chances of internal component compromise. The result is previously unattainable levels of both efficiency and performance. Boost increase with NTT is typically 2-3psi depending on compressor stage and engine combination.
Diverging Diffusion Technology (DDT) — Vortech's Diverging Diffusion Technology is utilized to optimize the compressor stage for specific applications and engine configurations for maximum horsepower gains.
Superior Bearing Components — V-30 Series Superchargers utilize a proprietary ceramic bearing design that are unique to the V-30. Vortech also uses a unique method of lubrication in the V-30 Series that is assisted through the introduction of air/oil misting.
Enhanced Air Inlet — V-30 Series Superchargers come with either billet or spun aluminum bellmouth air inlets that promote uniform inlet flow, resulting in improved compressor performance and increased horsepower output.
Founded in 1990 by Jim Middlebrook, Vortech Engineering, Inc. engineers efficient, high technology air management solutions for automotive, marine, industrial, aeronautical, and other motorsports applications. Since our inception, Vortech has been on the cutting edge of centrifugal compressor design technology, owning several patents, and winning numerous design awards, SEMA “Best New Product” awards, and countless racing championships in all manner of sanctioning bodies all over the world.
Previously an Engineer for Paxton Superchargers, Jim Middlebrook designed a revolutionary new internally gear-driven compressor and went off on his own to start Vortech Engineering. Focusing on the popular Ford engines of the day, Vortech quickly made a name for themselves with turn-key supercharging systems for both the Ford 5.0L, 5.8L and 7.5L engines. Fast becoming the go-to modification for all serious performance enthusiasts, Vortech expanded into many other car and truck applications, as well as creating additional arms of the company such as Vortech Marine and Vortron Industrial to meet the growing needs of centrifugal compressor technology in those fields. Almost exactly 10 years after Vortech was founded, Middlebrook purchased his former employer Paxton Superchargers, further expanding the product line and reach of Vortech Engineering to the masses.
Today, Vortech remains at the forefront of centrifugal compressor design and automotive accessory technology, with wide range of supercharging systems for all manner of cars and trucks, as well as fuel system components, air bypass components, and a popular line of charge cooler upgrades for the Ford Ecoboost line of cars and trucks. From daily driven street cars to 3,000 horsepower drag racers; Industrial airplane wing de-icers to nearly 8,000 horsepower quad-engine top speed boats, Vortech has the compressors available to get the job done, with efficiency and reliability that is unmatched throughout the industry.
